Figranium provides several mechanisms to make your automation tasks resilient to failures — from optional actions to retry loops and fallback sub-tasks.

​
Why Tasks Fail

Common failure modes in browser automation:
  • An element takes longer than expected to appear (timeout)
  • A popup or modal interrupts the expected flow
  • A network request fails or times out
  • A selector becomes stale after a navigation
  • A CAPTCHA is triggered
  • Dynamic content changes the page structure
A well-designed task anticipates these failures and handles them gracefully.

​

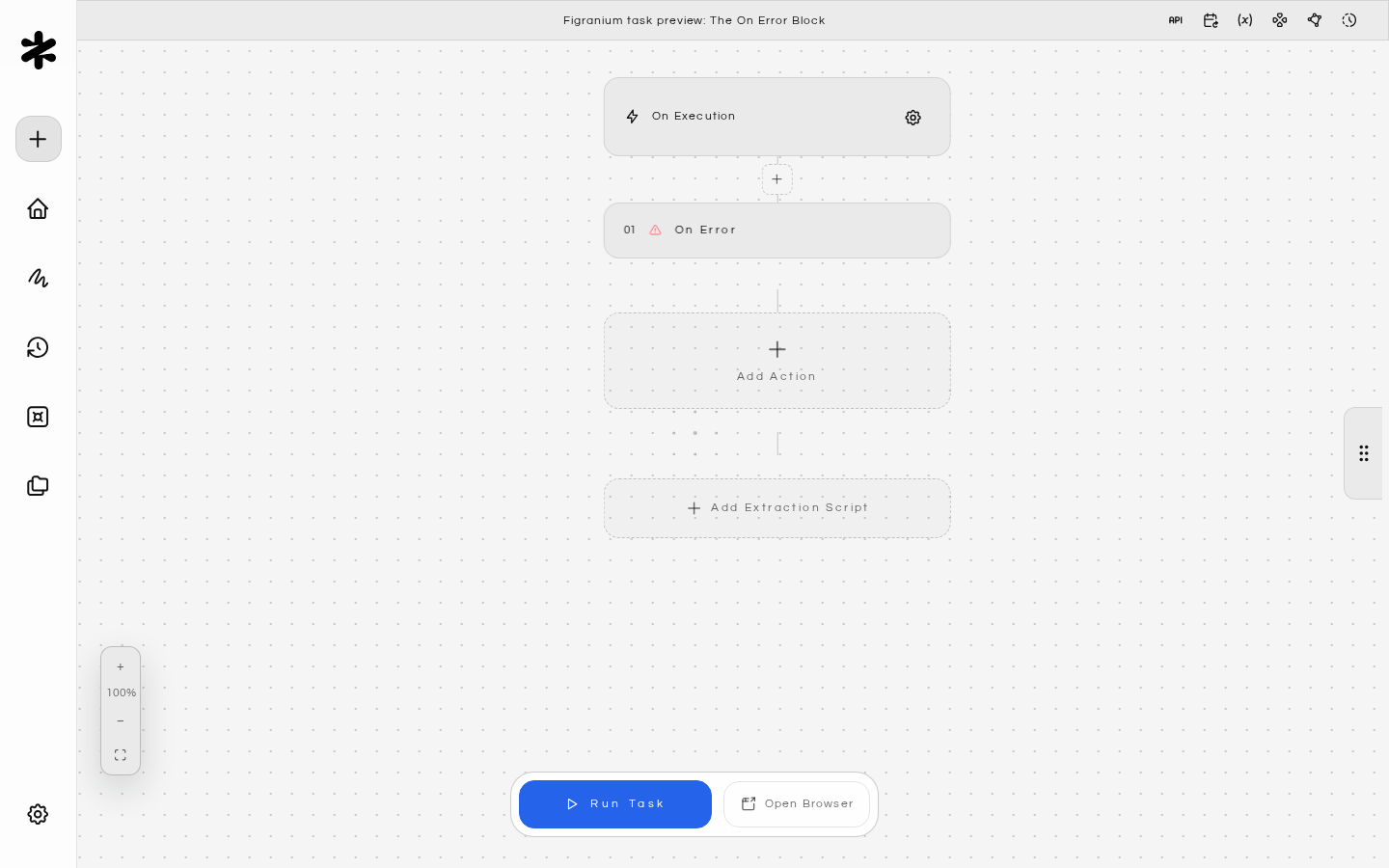

The on_error Block

The on_error block is Figranium’s primary error handling mechanism. It works like a try/catch: if any action in the main flow raises an error, execution jumps to the on_error block.
{ "type": "on_error" },
  // recovery actions
{ "type": "end" }
The on_error / end pair should be placed in the task to catch errors from preceding actions. Any error thrown by an action before the on_error block is caught.

​

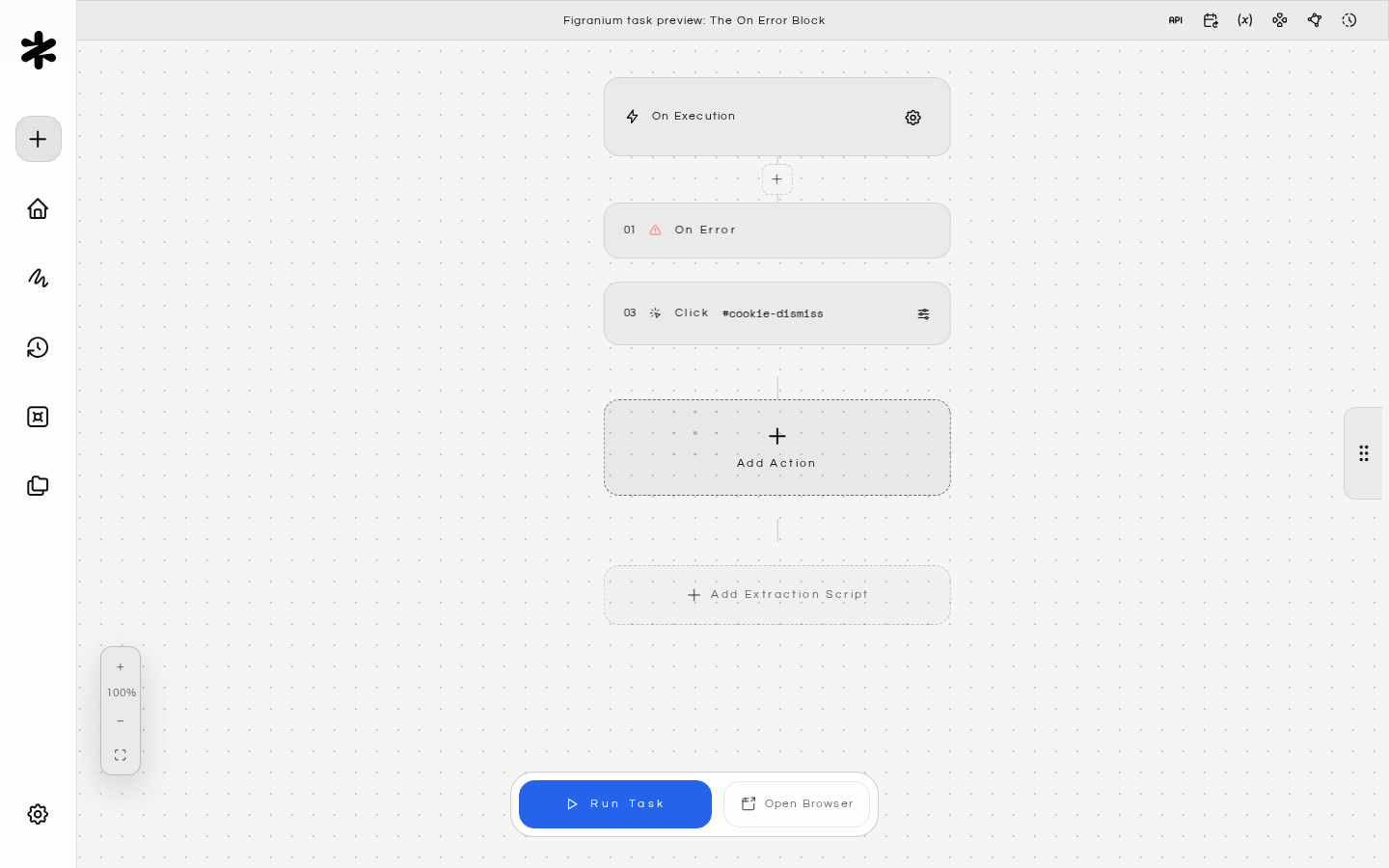

Making an Action Optional

The simplest use: place an empty on_error/end block to absorb errors from an action that may or may not exist:
// Dismiss a cookie banner only if it appears — ignore if it doesn't
{ "type": "on_error" },
{ "type": "end" },
{ "type": "click", "selector": "#cookie-dismiss", "timeout": 3000 }

​

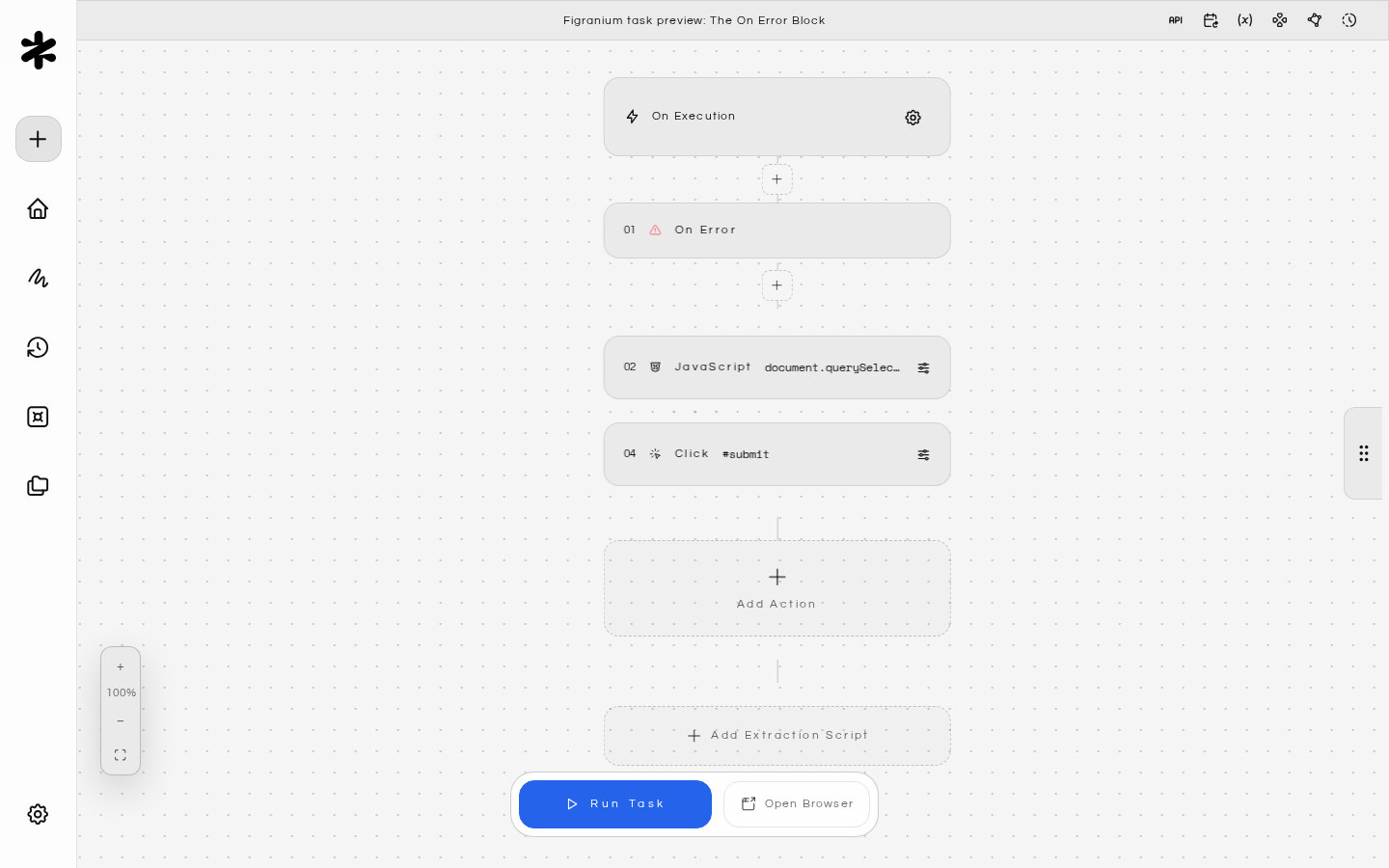

Fallback Action

Perform a fallback action when the primary approach fails:
// Try clicking the button; if it fails, use JavaScript as a fallback
{ "type": "on_error" },
  { "type": "javascript", "value": "document.querySelector('#submit').click(); return true;" },
{ "type": "end" },
{ "type": "click", "selector": "#submit" }

​

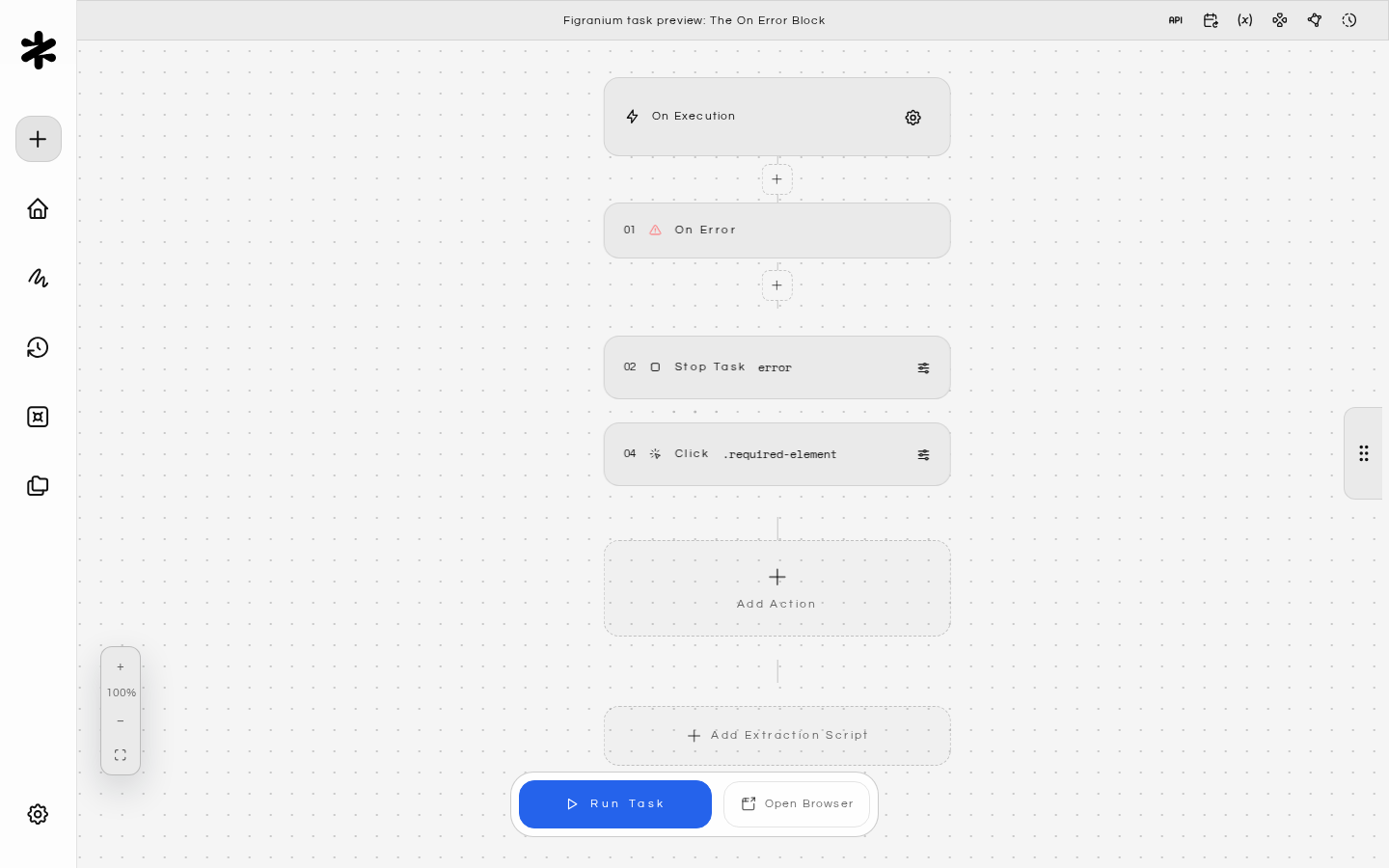

Stop on Error with a Reason

Log the failure and stop the task cleanly:
{ "type": "on_error" },
  { "type": "stop", "value": "error" },
{ "type": "end" },
{ "type": "click", "selector": ".required-element" }

​
Retry Patterns

​

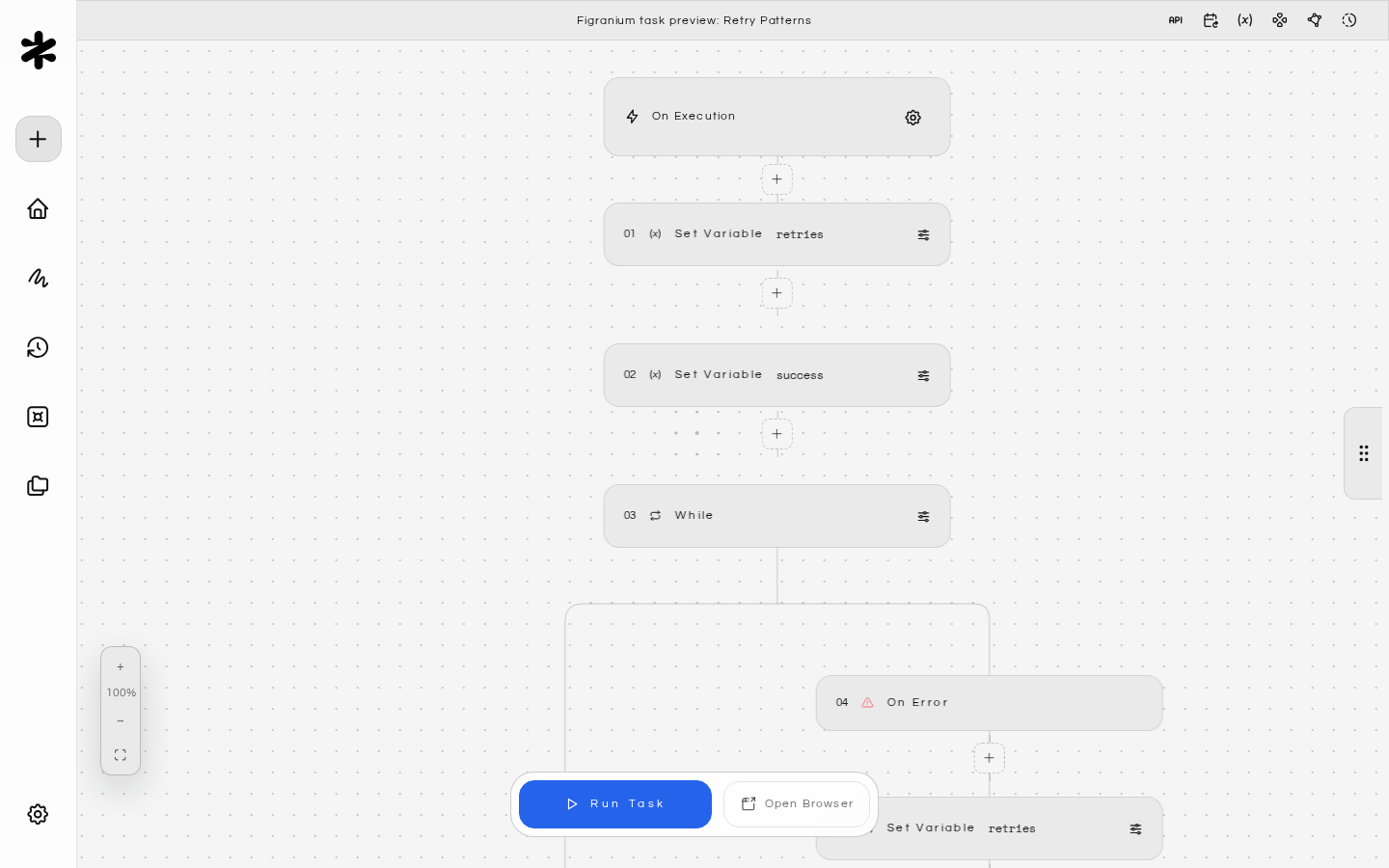

Retry with a Counter Variable

Use a while loop combined with a counter to retry a failing action up to N times:
{ "type": "set", "varName": "retries", "value": "0" },
{ "type": "set", "varName": "success", "value": "false" },
{ "type": "while", "value": "{$retries} < 3 && {$success} === 'false'" },
  { "type": "on_error" },
    { "type": "set", "varName": "retries", "value": "{$retries} + 1" },
    { "type": "wait", "value": "2000" },
  { "type": "end" },
  { "type": "click", "selector": ".load-more-button" },
  { "type": "set", "varName": "success", "value": "true" },
{ "type": "end" }
This retries up to 3 times with a 2-second pause between attempts, then continues if any attempt succeeds.

​

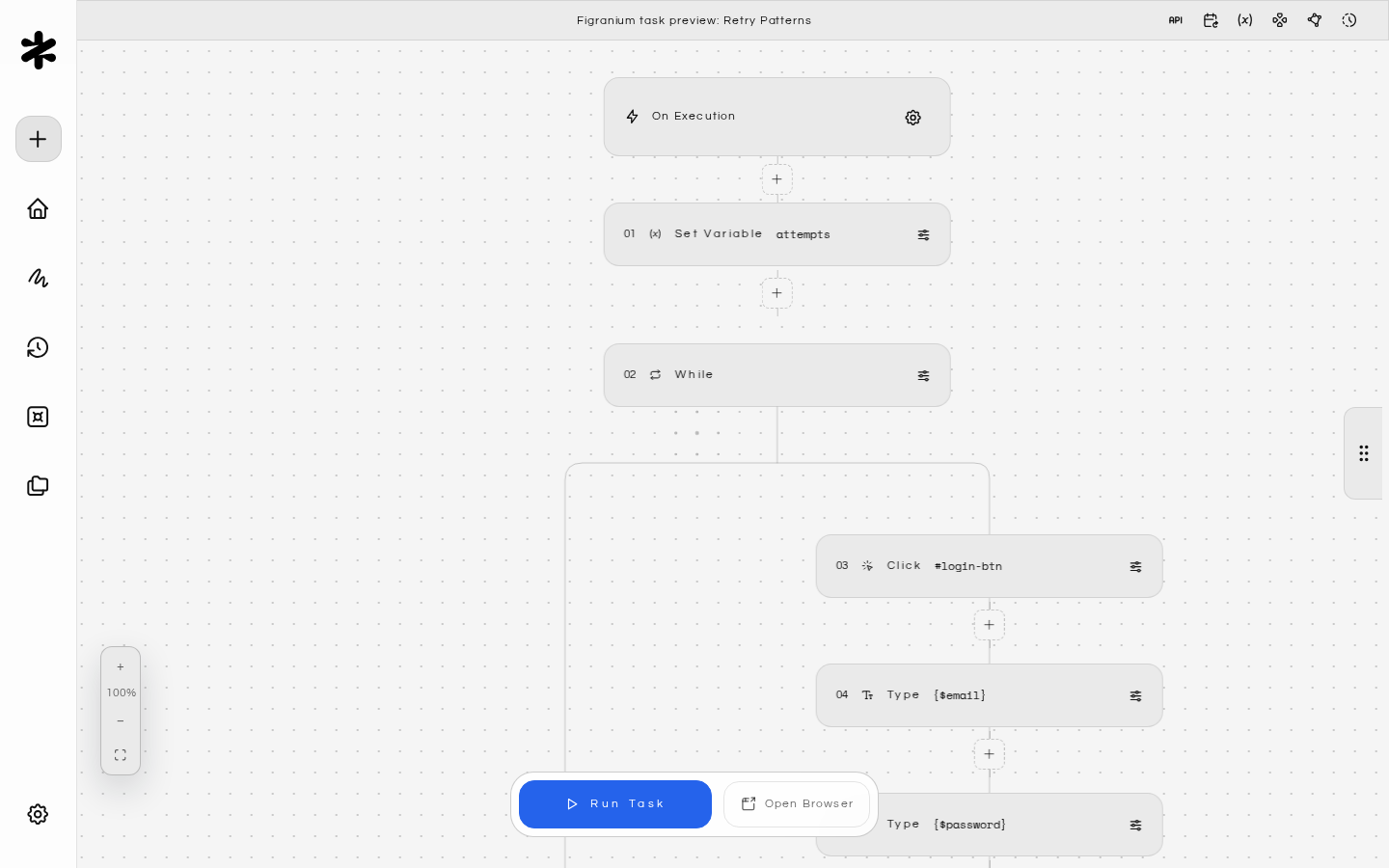

Retry a Login

{ "type": "set", "varName": "attempts", "value": "0" },
{ "type": "while", "value": "!exists('.dashboard') && {$attempts} < 5" },
  { "type": "click", "selector": "#login-btn" },
  { "type": "type", "selector": "#email", "value": "{$email}" },
  { "type": "type", "selector": "#password", "value": "{$password}" },
  { "type": "click", "selector": "[type='submit']" },
  { "type": "wait", "value": "3000" },
  { "type": "set", "varName": "attempts", "value": "{$attempts} + 1" },
{ "type": "end" }

​
Handling Popups and Modals

Popups that appear unpredictably are a common cause of task failures. Handle them proactively.

​

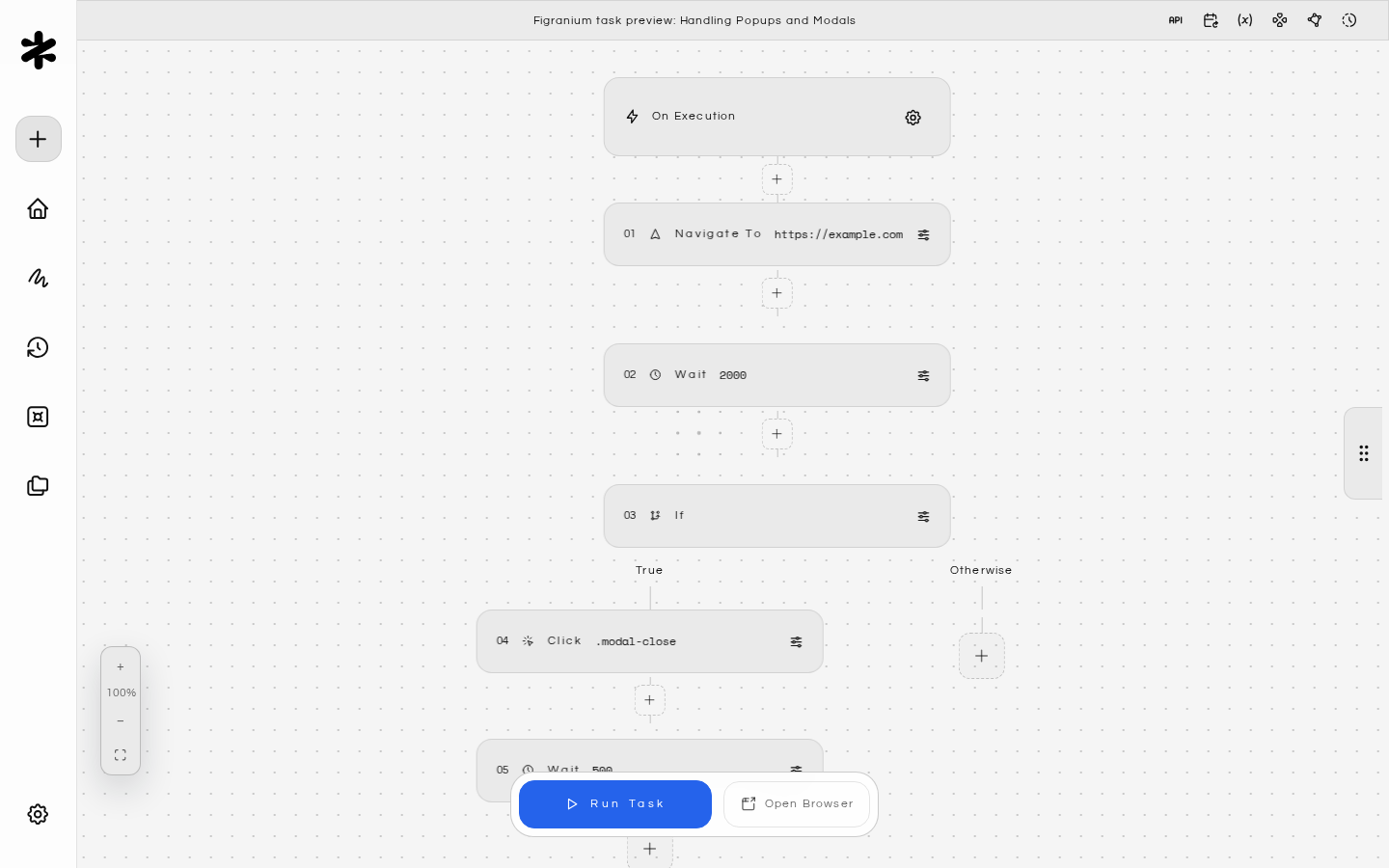

Check and Dismiss Before Proceeding

{ "type": "navigate", "value": "https://example.com" },
{ "type": "wait", "value": "2000" },
{ "type": "if", "value": "exists('.modal-overlay')" },
  { "type": "click", "selector": ".modal-close" },
  { "type": "wait", "value": "500" },
{ "type": "end" },
{ "type": "click", "selector": ".main-content" }

​

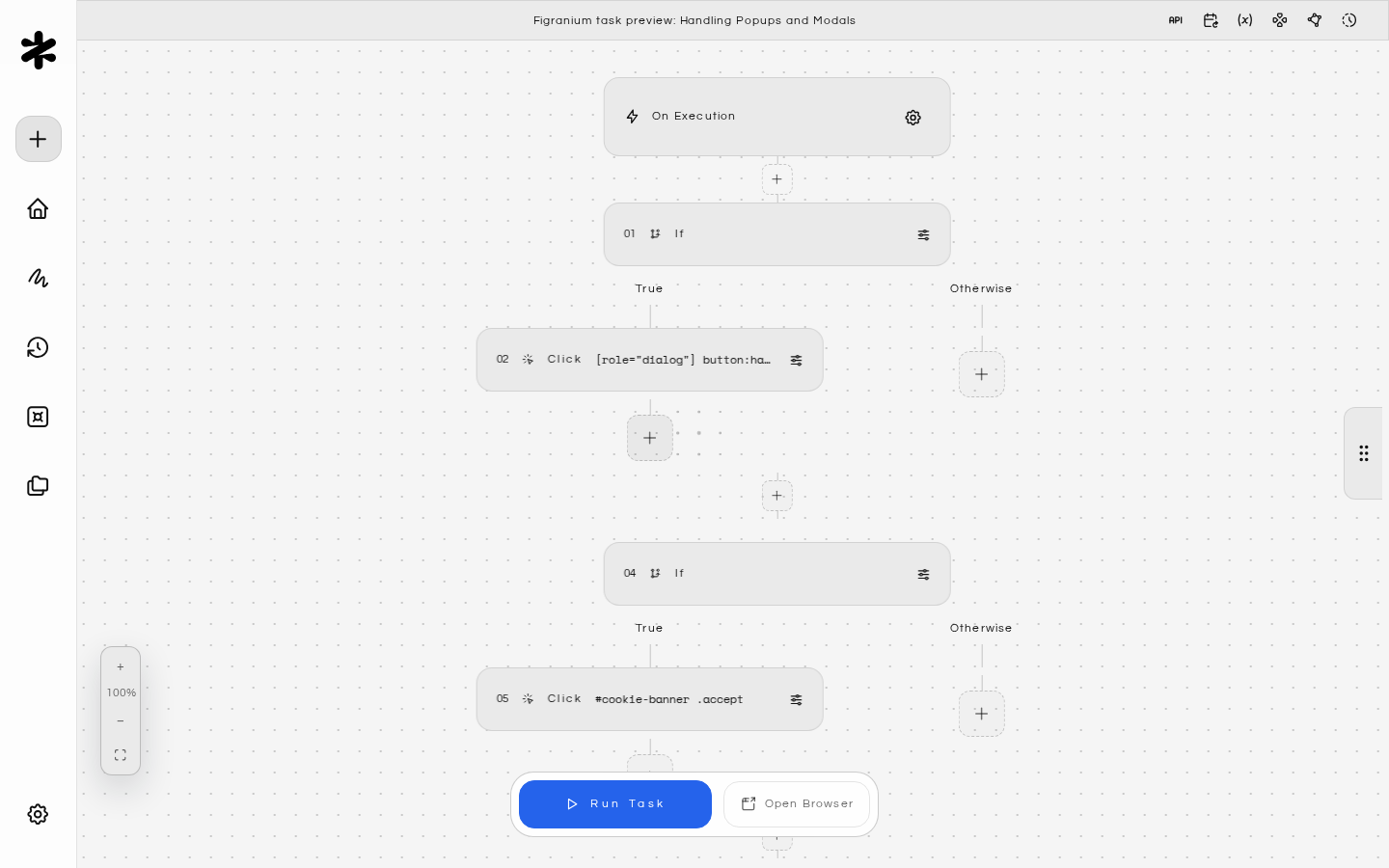

Dismiss Any Popup on Every Page

Use a sub-task triggered via start to handle common popups at the beginning of every task:
// popup-handler task
[
  { "type": "if", "value": "exists('[role=\"dialog\"] button:has-text(\"Close\")')" },
    { "type": "click", "selector": "[role=\"dialog\"] button:has-text(\"Close\")" },
  { "type": "end" },
  { "type": "if", "value": "exists('#cookie-banner')" },
    { "type": "click", "selector": "#cookie-banner .accept" },
  { "type": "end" }
]

// Main task
[
  { "type": "navigate", "value": "https://example.com" },
  { "type": "start", "value": "popup-handler-task-id" },
  // ... rest of task
]

​

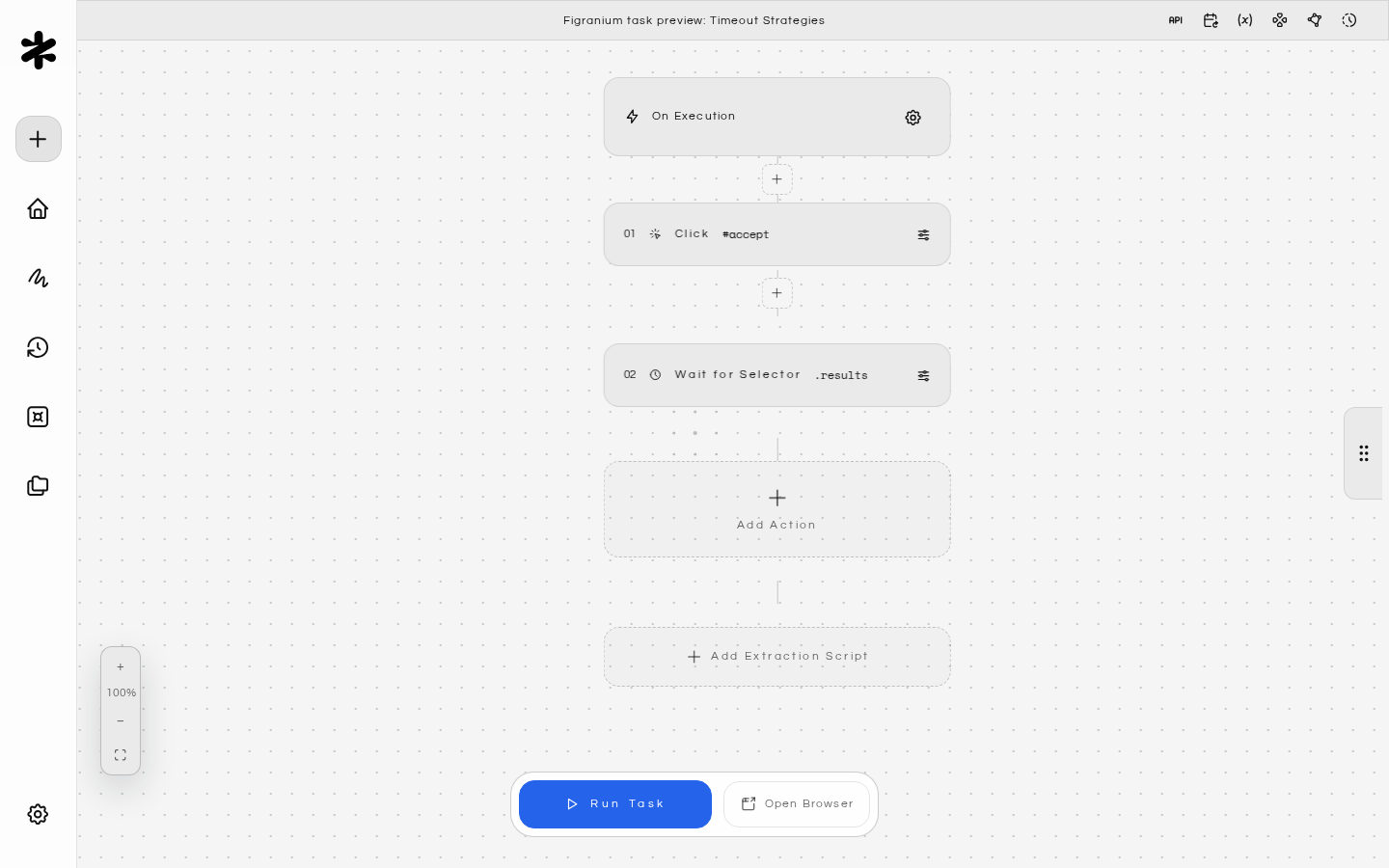

Timeout Strategies

Each action block can have its own timeout (in milliseconds). Use shorter timeouts for elements that should appear quickly, and longer ones for slow-loading content.
// Short timeout for something that should already be on the page
{ "type": "click", "selector": "#accept", "timeout": 2000 }

// Longer timeout for a result that loads after an API call
{ "type": "wait_selector", "selector": ".results", "timeout": 15000 }
Use on_error around short-timeout actions to make them non-fatal when the element doesn’t appear.

​

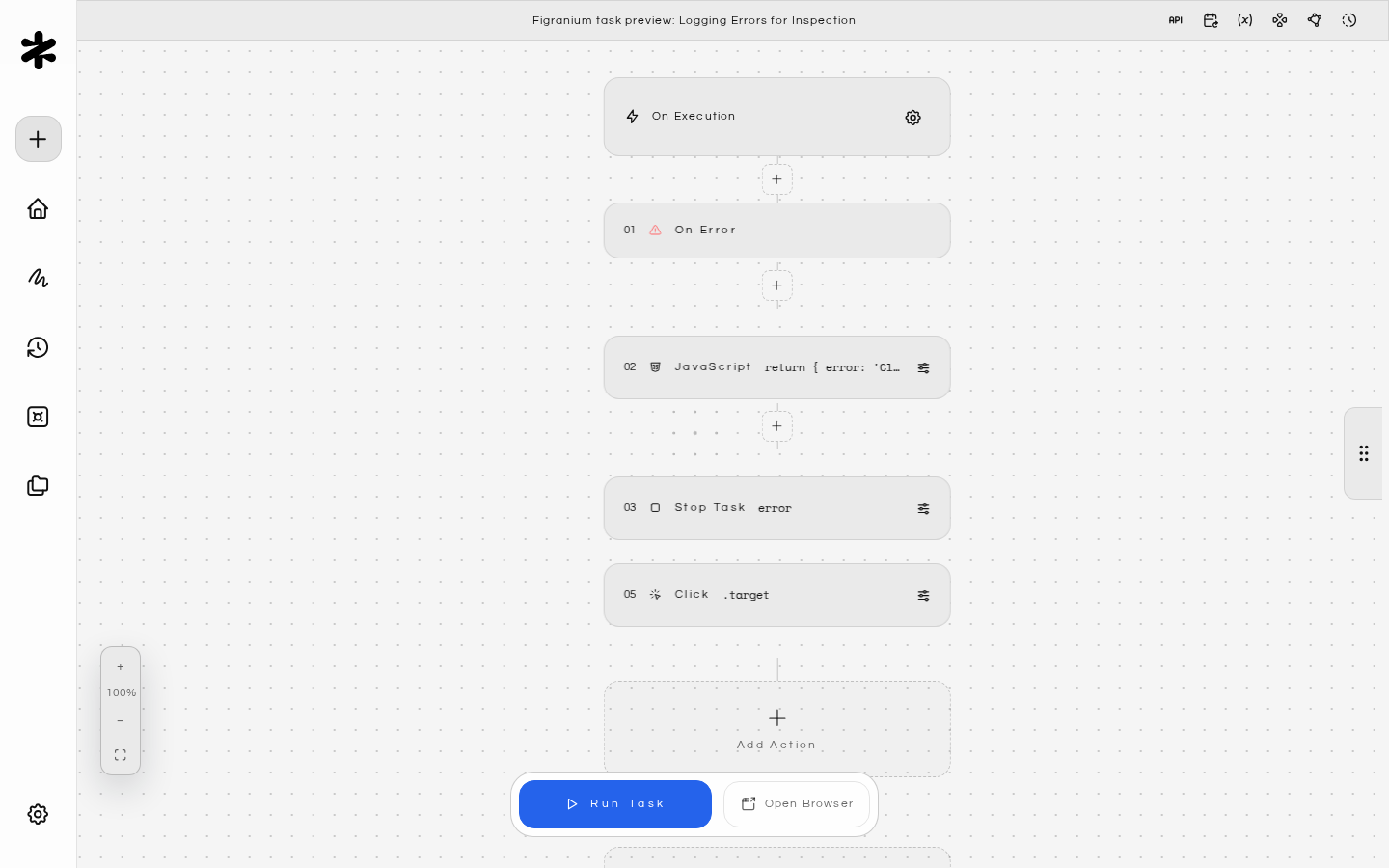

Logging Errors for Inspection

Use a javascript block inside on_error to log diagnostic information to the execution output:
{ "type": "on_error" },
  {
    "type": "javascript",
    "value": "return { error: 'Click failed', url: window.location.href, title: document.title }"
  },
  { "type": "stop", "value": "error" },
{ "type": "end" },
{ "type": "click", "selector": ".target" }
The returned object appears in the execution detail view, giving you context about what the page looked like when the failure occurred.

​
Output Provider Error Handling

When using Output Providers, you can control what happens if the data push to an external service fails:
  • onError: "ignore" (default): The execution is marked as successful even if the push fails.
  • onError: "fail": The execution is marked as failed if the push fails.
Choose fail when data delivery is critical and you want alerts on push failures.
